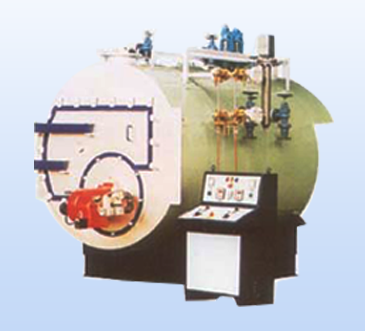

| Boile/Oil/Gas Smoke Tube Package |
 |
| Capacity |
: |
500 kg/hr to 15,000 kg/hr |
| Fuel |
: |
L.D.O., F.O., H.S.D., Natural Gas or any special liquid or gas |
|
Manufacturing under Internationally accepted Inspection Agencies i.e. IBR, Lloyd's, SGS, Bureau Veritas, TUV, or any others as per client's demand |
|
|
| |
|
| |
| Model |
Unit |
AB-10 |
AB-15 |
AB-20 |
AB-30 |
AB-40 |
AB-50 |
AB-60 |
AB-70 |
AB-80 |
AB-90 |
AB-100 |
| Evaporation F & A 100 o C |
Kgs/Hr |
1000 |
1500 |
2000 |
3000 |
4000 |
5000 |
6000 |
7000 |
8000 |
9000 |
10000 |
| Rating |
M2 |
33 |
48 |
65 |
95 |
125 |
155 |
190 |
220 |
250 |
280 |
312 |
| Working Press |
Kgs/cm2 |
10.54 Kgs/cm2 to 21.09 Kgs/cm2
|
| Eff. On NCV |
% |
|
Fuel
Consum. |
LDO |
Kgs/Hr |
60 |
90 |
120 |
180 |
240 |
300 |
360 |
420 |
480 |
540 |
600 |
| FO |
Kgs/Hr |
63 |
94.5 |
126 |
189 |
252 |
315 |
378 |
441 |
504 |
567 |
630 |
| Design code |
|
|
| Electric Supply |
|
415 Volts, 50Hz, 3p. 4 Wire |
| Feed pump |
KW |
3.75 |
3.75 |
5.00 |
5.00 |
5.00 |
7.50 |
10.5 |
10.5 |
10.5 |
10.5 |
10.5 |
| Blower motor |
KW |
2.25 |
3.75 |
3.75 |
5.00 |
7.50 |
10.50 |
10.50 |
15.0 |
18.75 |
18.75 |
18.75 |
| Fuel preheater |
KW |
6.0 |
9.0 |
9.0 |
12.0 |
15.0 |
18.0 |
18.0 |
18.0 |
18.0 |
18.0 |
18.0 |
| Fuel pump |
KW |
0.50 |
0.75 |
0.75 |
0.75 |
0.75 |
0.75 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
|
| |
|
Higher capacity Boilers are available on request. |
|
LDO Gross Calorific Value – 10079 Kcal/Kg. |
|
FO Gross Calorific Value – 9600 Kcal/Kg. |
|
| |
|
|
| |
